Nylon Coated Wire
Low-friction nylon coating for high-speed double-loop and spiral binding, with extreme formability and non-toxic, environmentally friendly materials.
Wire Company · Since 1983
FM Binding manufactures nylon coated bookbinding wire, steel wire, annealing wire, tie wire, steel fiber and nails — supplying reliable quality to customers worldwide.
Who we are
Founded in 1983, FM Binding Company has grown from a single workshop in Seoul into a specialised wire manufacturer operating three factories across Korea. We produce a broad range of drawn, coated and annealed wire products for binding, construction, packaging and industrial applications.
Consistency is at the heart of what we do. Tight diameter tolerances, uniform tensile strength and dependable coating quality let our customers run high-speed machinery with confidence — whether they are forming book spines, tying rebar or reinforcing concrete.
What we make
From bookbinding wire to construction wire, every product is drawn and finished to deliver predictable performance on your line.
Low-friction nylon coating for high-speed double-loop and spiral binding, with extreme formability and non-toxic, environmentally friendly materials.

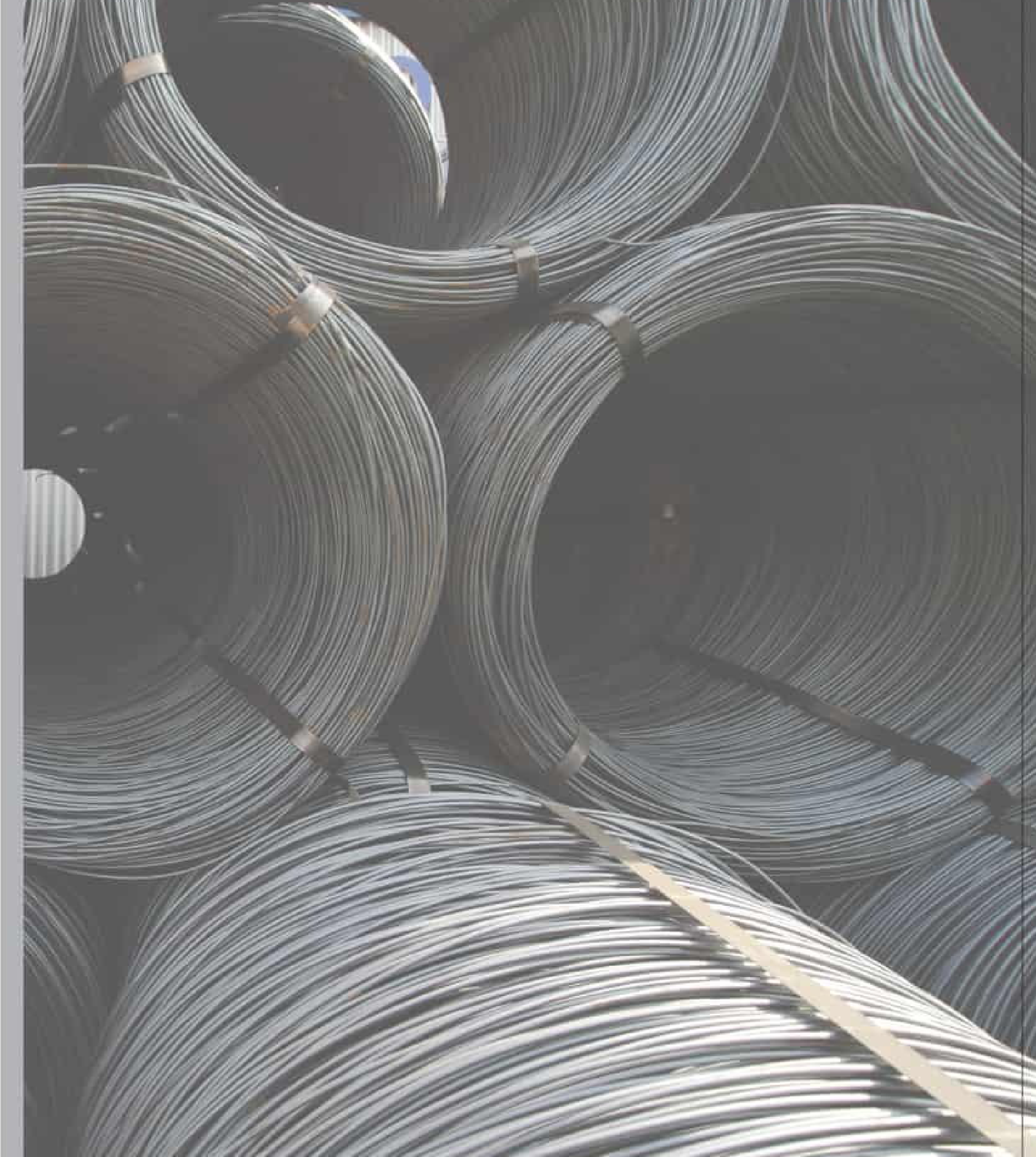

Drawn steel wire produced to tight diameter tolerances and consistent tensile strength for a wide range of industrial uses.
Soft, pliable annealed wire that bends easily and holds its shape — ideal for tying, bundling and general fabrication.
Dependable tie wire for rebar, construction and packaging, supplied in coils and cut lengths to suit the job.
Steel fiber for concrete reinforcement, improving toughness, crack resistance and load capacity in industrial flooring and precast.
Wire nails manufactured from our own drawn wire, giving full control over quality from raw material to finished fastener.

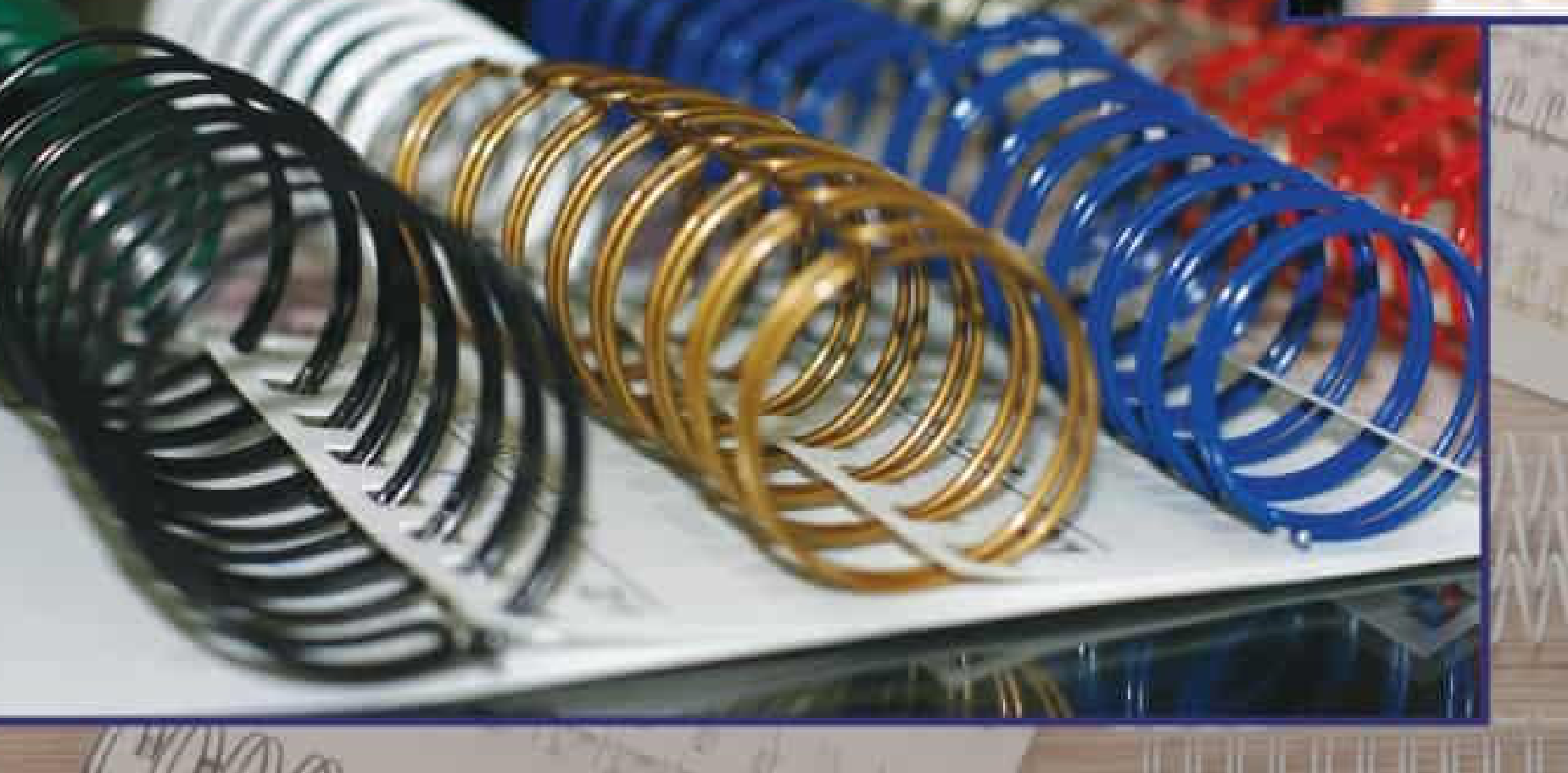

A wide range of pitch and diameter spiral coils, supplied pre-cut to customer size and packed in carton.

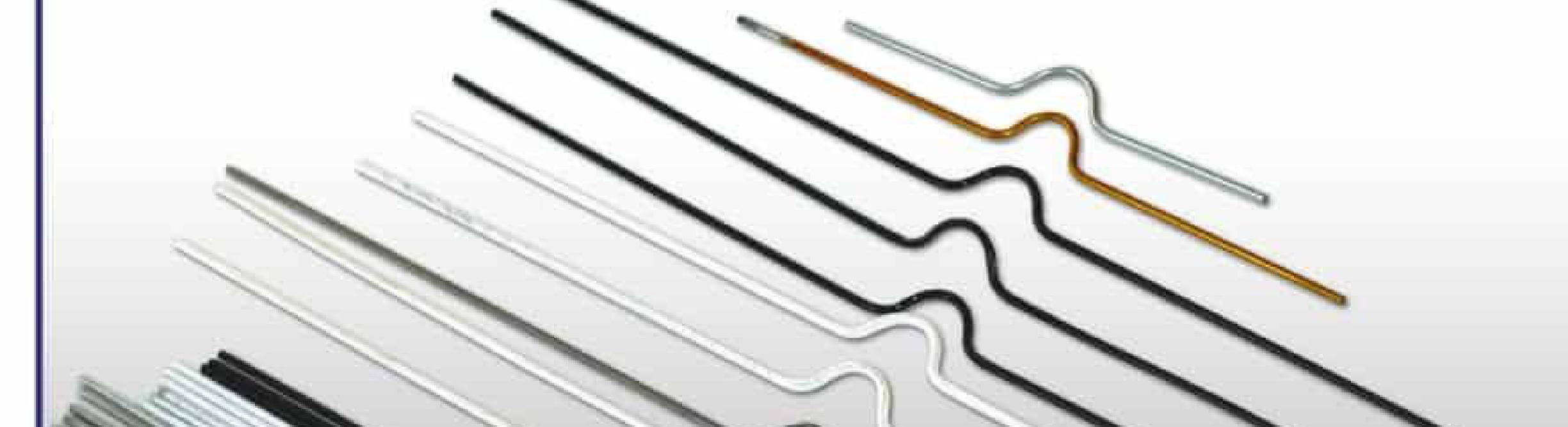

Calendar hanger wire cut to various lengths and packed in carton or bundle, ready for assembly.
Our specialty

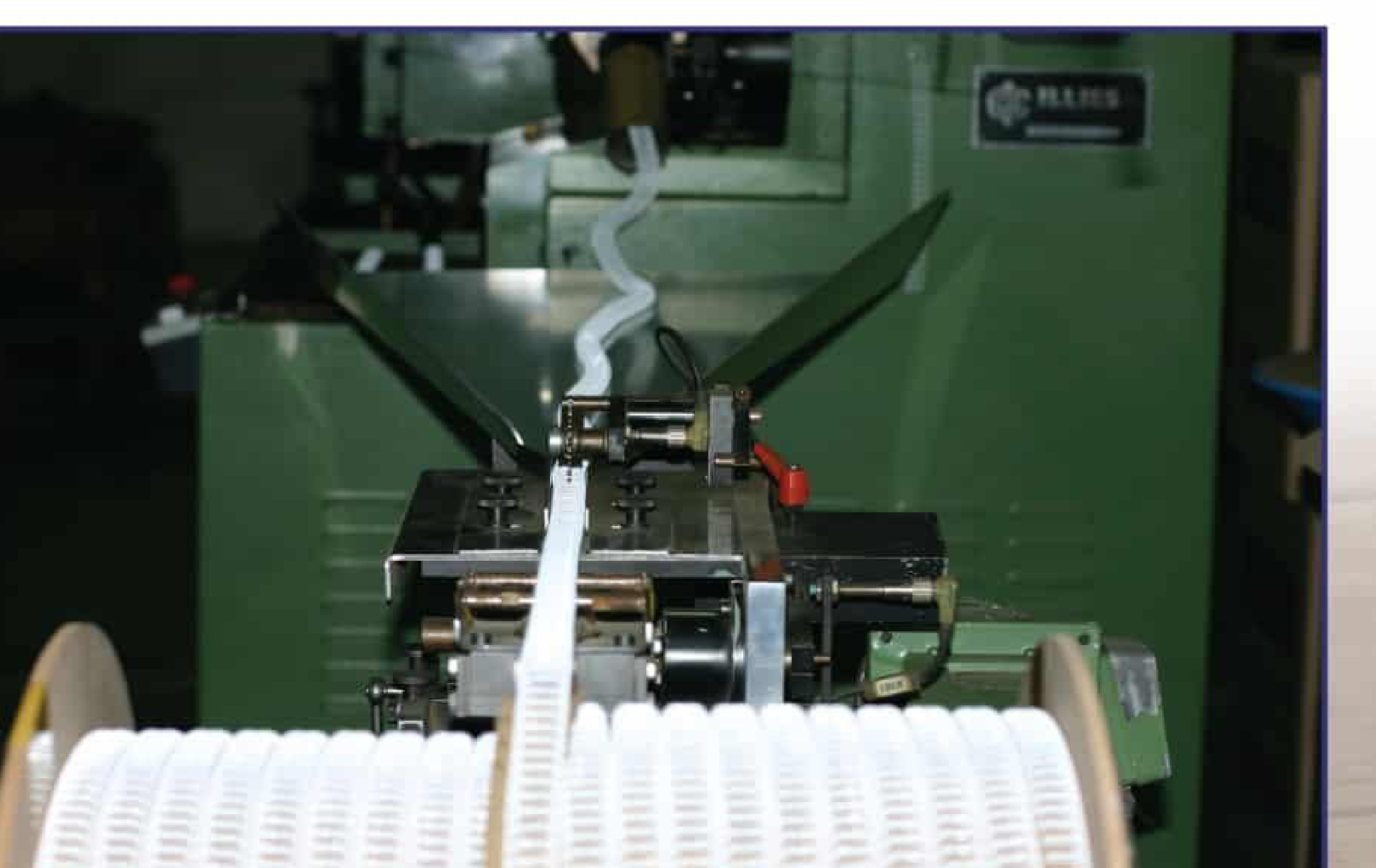

Our nylon coating offers by far the lowest frictional resistance, allowing higher forming speeds. Perfect adhesion of the nylon to the base wire gives extreme formability, while a highly consistent tensile strength ensures perfect comb forming every time.
Lowest frictional resistance of any coating.
Perfect nylon-to-substrate adhesion.
Reliable, repeatable comb forming.
Environmentally familiar process and materials.

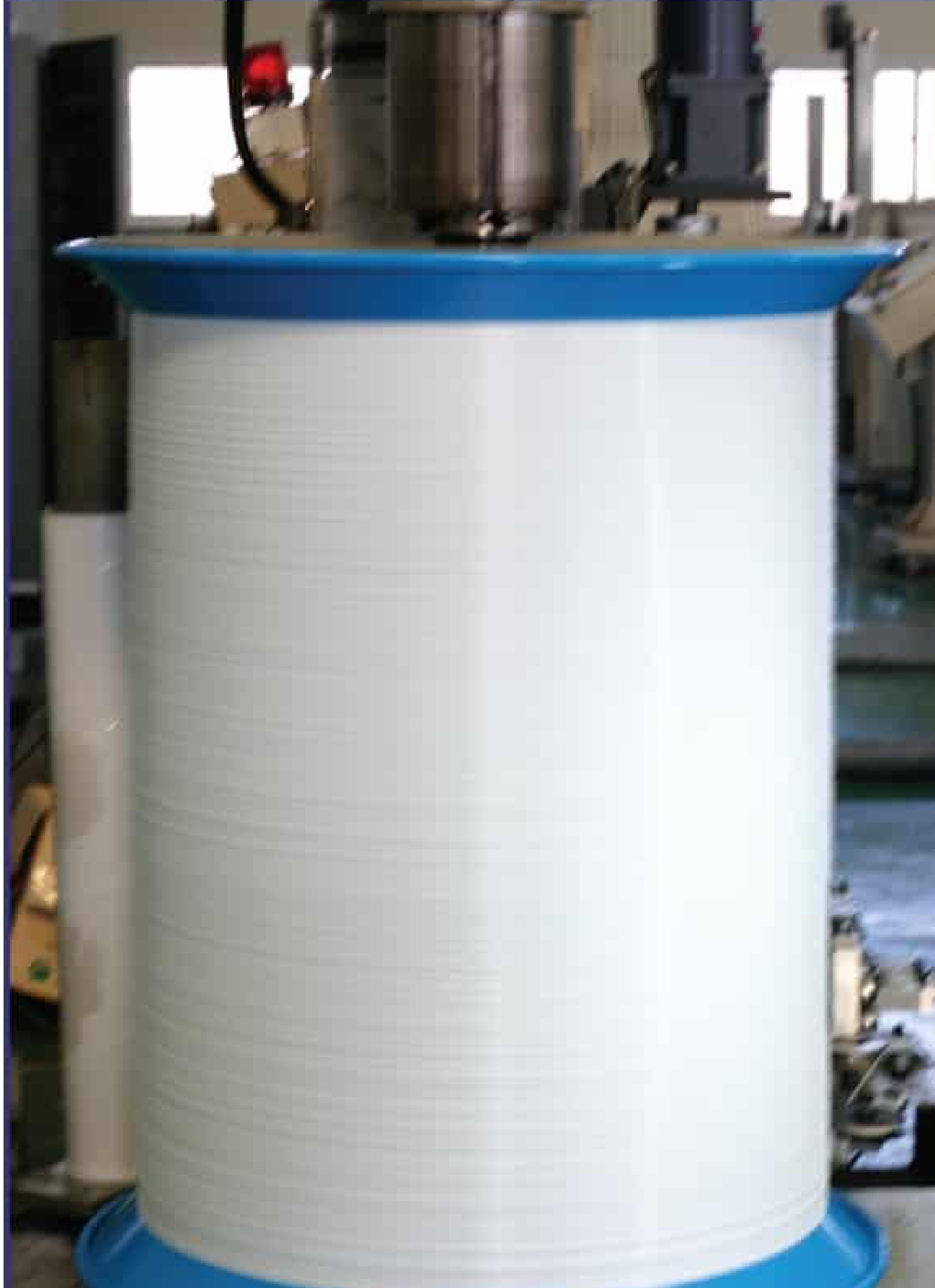

Packing: 400 kg / bobbin
Specifications
Representative properties of our bookbinding wire. Other diameters, tolerances and tensile ranges are available on request.
| Overall diameter (mm) |
Diameter tolerance (mm) |
Tensile strength Rm (N/mm²) | Weight (kg/1000m) |
|
|---|---|---|---|---|
| 95% confidence limits | indicative value | |||
| 0.70 | −0.01 / +0.02 | 700 – 850 | 775 | 2.54 |
| 0.80 | −0.01 / +0.02 | 700 – 850 | 775 | 3.40 |
| 0.90 | −0.01 / +0.02 | 700 – 850 | 775 | 4.37 |
| 1.00 | −0.02 / +0.02 | 675 – 825 | 750 | 5.47 |
| 1.10 | −0.02 / +0.02 | 650 – 800 | 725 | 6.70 |
| 1.15 | −0.02 / +0.02 | 640 – 790 | 715 | 7.36 |
| 1.20 | −0.02 / +0.02 | 625 – 775 | 700 | 8.05 |
| 1.30 | −0.02 / +0.02 | 600 – 750 | 675 | 9.52 |
| 1.40 | −0.02 / +0.02 | 575 – 725 | 650 | 11.11 |
| 1.50 | −0.02 / +0.02 | 550 – 700 | 625 | 12.83 |
| 2.00 | −0.02 / +0.02 | 500 – 650 | 575 | — |
| Specification | FB 500 | FB 800 |
|---|---|---|
| Capacity | 450 kg | 750 kg |
| Flanges (D₁) | 570 mm | 800 mm |
| Core (D₂) | 305 mm | 450 mm |
| Traverse (L₂ / L₁) | 400 / 680 mm | 315 / 635 mm |
Our journey
FM Binding Company is established.
Relocated to the central region of Korea.
Acquired certification of KS D3552 / KS D3553.
Set up second factory in Paju.
Set up third factory in the Daegu region (Chilgok).

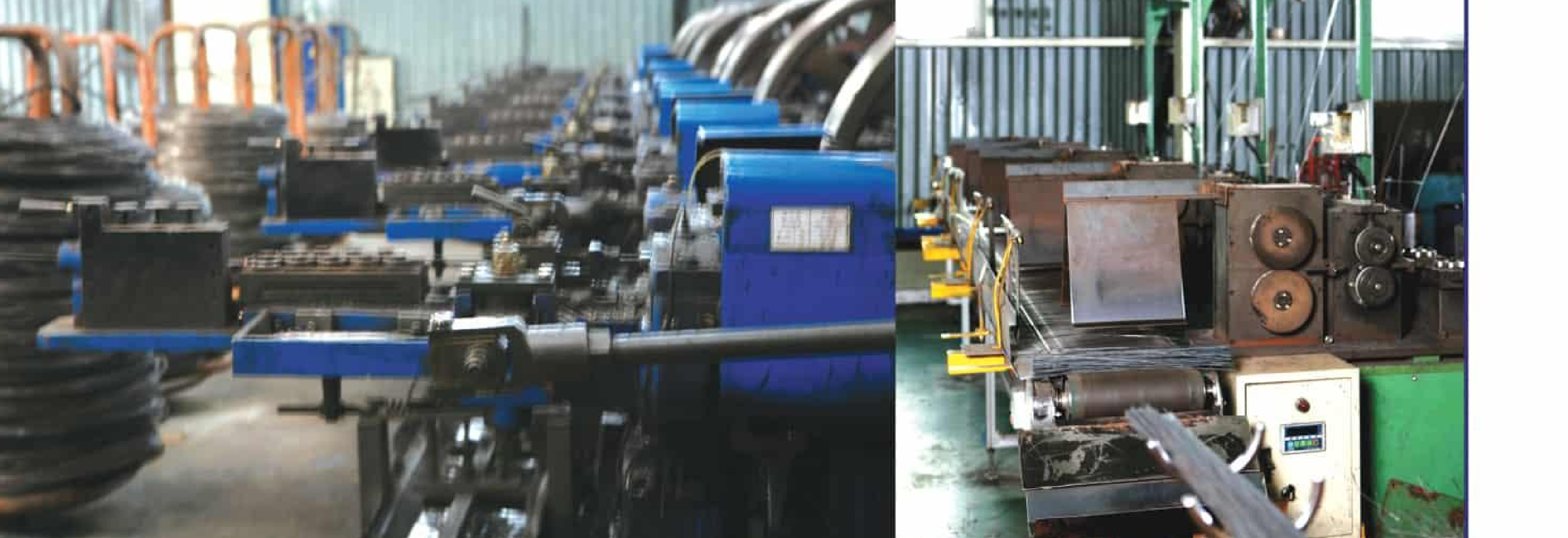

Our facilities

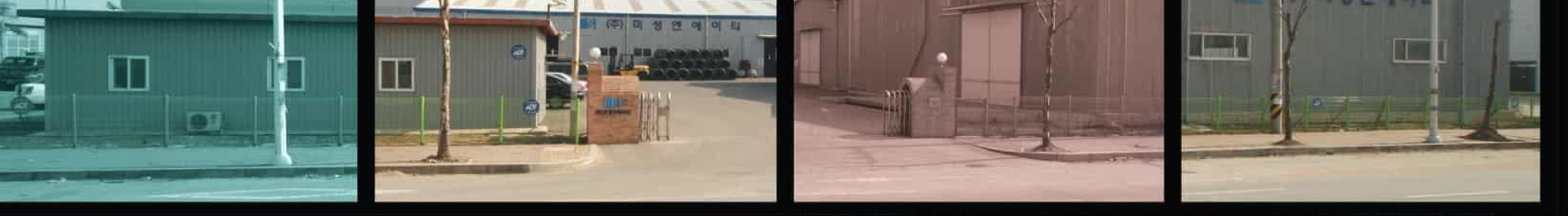

Three factories across Korea give us the capacity and flexibility to meet demanding production schedules.
Get in touch
Reach out to our head office or visit one of our factories. We are happy to discuss specifications, samples and quotations.
1208-6 Dogok-ri, Poseung-eup,
Pyeongtaek-si, Gyeonggi-do, Korea
1373-15 Sunyu-ri, Munsan-eup,
Paju-si, Gyeonggi-do, Korea
930-2 Geumsan-ri, Oegwan-eup,
Chilgok-gun, Gyeongsangbuk-do, Korea
